Auto loading durometer P1-E

Type E durometer for soft rubbers (rubbers in the low hardness range) specified by JIS K 6253 and ISO 7619 standards to be used in a similar manner as the conventional ASKER type C.

An auto loading durometer with our new high precision sensor, multi data indication system, and motor-driven constant loading mechanism essential for stable measurement.

Features

Simple operation

Enables hardness measurement with a single touch of a button. The results may be output to PC and dedicated printer.

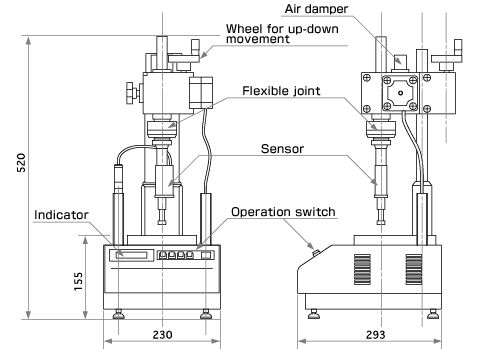

Flexible joint

The flexible joint enables precise and reproducible hardness measurement, eliminating deviations.

Double slide shaft

With the double slide shaft, the measuring position may be kept even after the height of the up-down lift is changed.

Multi data

Multi-data (peak value, timer-hold value, real time value) indication enables multifaceted hardness measurement.

Sensor replacement

By replacing the sensor, hardness measurements in accordance with the respective standards of JIS, ISO, ASTM, etc. are possible. When replacing the sensor, it is necessary to replace the weight and flexible joint as well.

Application software

Equipped with application software for measurement.

Starting and finishing of measurement
Measurement of peak value and timer-hold value
Data may be easily exported to Excel.

* Some technical information including the means by which the program can communicate shall be released.

* No PC is included with shipment (A connection cable is included).

Specifications

Conforming standards

JIS K 6253
ISO 7619

Indentor design (mm)

2.50H Φ5.00 Hemisphere

Pressure foot size(mm)

Outer diameter 31.8
Inner diameter 5.4

Loading method

Coil spring

Spring load mN(g)

0 point: 550(56)

100 point: 8050(821)

Minimum readout value

0.1 point

Sensor's descent speed control

Air damper

Adjustable height range (mm)

0-80

Multi data indication

·Peak value
·Timer-hold value (the timer may be set within the range of 0-15 seconds by the timer button on the unit)
·Real-time value

External output

RS-232C(PC/printer switchable)

Power source

AC100V 2A

Weight (kg)

Approx. 18

Intended specimen type

Soft rubbers, urethane foams, sponges, yarn windings, rolled films, potter's clay
